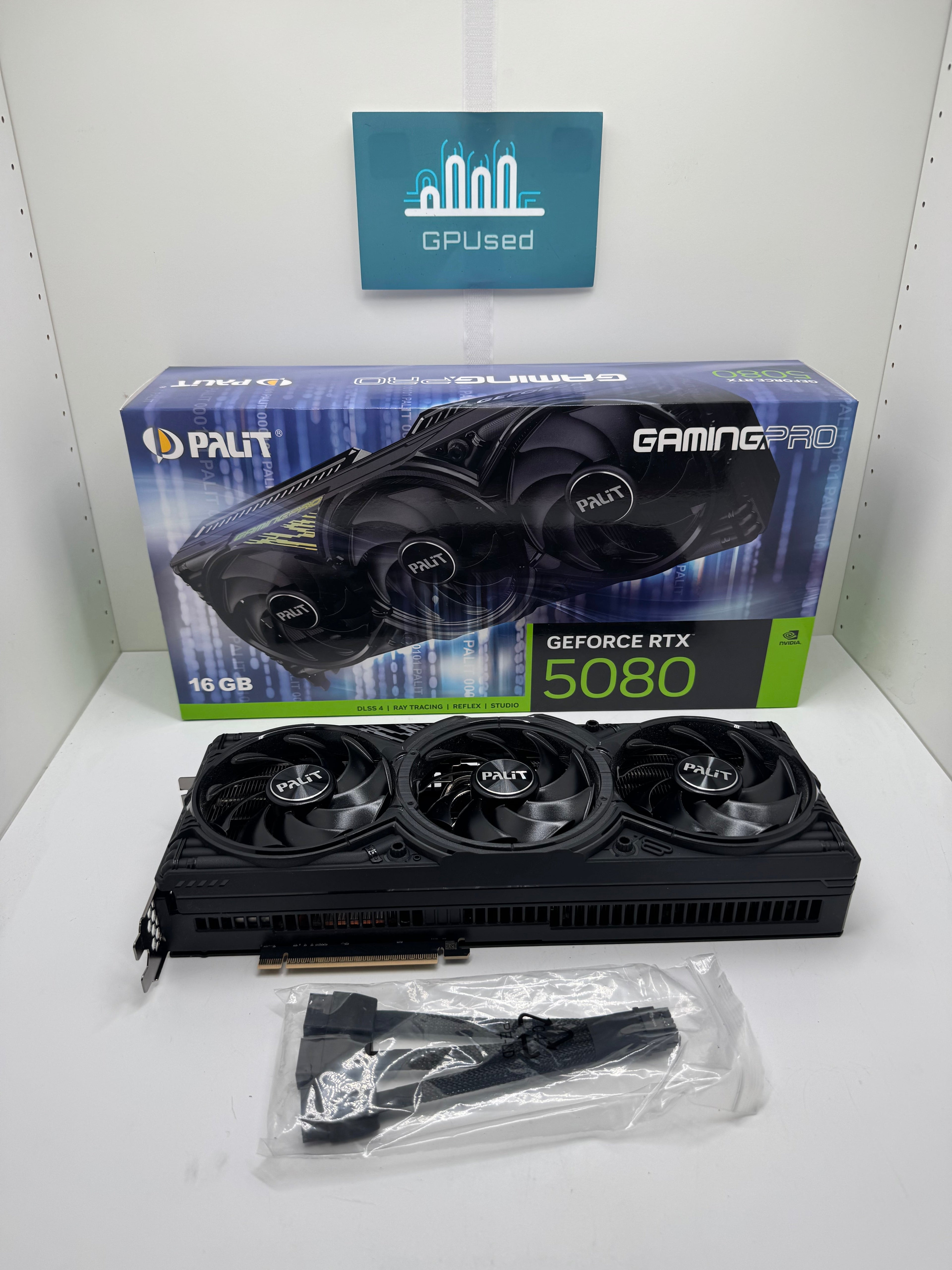

Palit Nvidia GeForce RTX 5080 Gaming Pro 16GB GDDR7 - A
Palit Nvidia GeForce RTX 5080 Gaming Pro 16GB GDDR7 - A
Product Description -
Summary - Excellent condition, with the box. Specifications below -
Graphics Processor
- GPU Name
- GB203
- GPU Variant
- GB203-400-A1
- Architecture
- Blackwell 2.0
- Foundry
- TSMC
- Process Type
- 4N FinFET
- Process Size
- 5 nm
- Transistors
- 45,600 million
- Density
- 120.6M / mm²
- Die Size
- 378 mm²
Graphics Card
- Release Date
- Jan 30th, 2025
- Announced
- Jan 6th, 2025
- Generation
- GeForce 50
- Predecessor
- GeForce 40
- Production
- Active
- Bus Interface
- PCIe 5.0 x16
Clock Speeds
- Base Clock
- 2295 MHz
- Boost Clock
- 2617 MHz
- Memory Clock
- 1875 MHz
30 Gbps
Memory
- Memory Size
- 16 GB
- Memory Type
- GDDR7
- Memory Bus
- 256 bit
- Bandwidth
- 960.0 GB/s
Render Config
- Shading Units
- 10752
- TMUs
- 336
- ROPs
- 112
- SM Count
- 84
- Tensor Cores
- 336
- RT Cores
- 84
- L1 Cache
- 128 KB (per SM)
- L2 Cache
- 64 MB
Theoretical Performance
- Pixel Rate
- 293.1 GPixel/s
- Texture Rate
- 879.3 GTexel/s
- FP16 (half)
- 56.28 TFLOPS (1:1)
- FP32 (float)
- 56.28 TFLOPS
- FP64 (double)
- 879.3 GFLOPS (1:64)
Board Design
- Slot Width
-
Dual-slot
Triple-slot
- Length
-
304 mm
332 mm12 inches
13.1 inches
- Width
-
137 mm
146 mm5.4 inches
5.7 inches
- Height
-
40 mm
70 mm1.6 inches
2.8 inches
- TDP
- 360 W
- Suggested PSU
- 750 W
- Outputs
- 1x HDMI 2.1b
3x DisplayPort 2.1b
- Power Connectors
- 1x 16-pin
- Board Number
- PG147 SKU 45
Graphics Features
- DirectX
- 12 Ultimate (12_2)
- OpenGL
- 4.6
- OpenCL
- 3.0
- Vulkan
- 1.4
- CUDA
- 12.0
- Shader Model
- 6.8
GB203 GPU Notes
| Ray Tracing Cores: 4th Gen Tensor Cores: 5th Gen NVENC: 9th Gen NVDEC: 6th Gen PureVideo HD: VP11 VDPAU: Feature Set K Latest Drivers: Windows 10 / 11: GeForce Release: Latest Quadro Release: Latest Data Center Release: Latest |
This card has passed several tests. We guarantee that every graphics card we sell is in 90% like-new condition or better, with no more than 1,440 total hours of use. These tests include - A 1 hour run on Furmark (for temperature readings and to ensure stability), one run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models) and we only buy cards in once they’ve passed all 3 tests and remained below 75°C, even under the extremely high loads of a 1 hour Furmark test. Finally, we perform a visual check to ensure it’s in good enough aesthetic condition before we buy the product in. This insures we never have stock we’re not happy with, so you never have to worry when buying from us!
All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.
Here's the GPUsed product grading system (currently only in place for GPUs)
A+ - New or Like new
A - Excellent / Very good for a used item (our most common grade)
B - Working (may have some cosmetic issues but won't affect performance)
C - Non working (we don't currently sell non working hardware)
Full specifications can be found at the manufacturers website.
Feel free to check out our reviews on Google and Trustpilot for added piece of mind :
GPUsed - 4.9* Reviews on Trustpilot
If you’re looking to sell a graphics card to us. Simply get in touch via the contact form at the following link for a personalised quote : https://www.gpused.co.uk/contact
